Genlab E3 Energy Efficient Drying Cabinets

100 litre Drying Cabinet
E3DWC100N/TDIG
885 litre drying cabinet
E3DWC885/F/TDIG

Genlab is proud to offer their customers a unique range of sustainable laboratory products and services. E3 is our market leading brand for scientifically developed, cutting edge, sustainable, eco-friendly products. Genlab's new E3 range of glassware drying cabinets are energy efficient, safer and economic to run. Working with the University of Cambridge, we developed units that represent a novel, sustainable solution to glassware drying. The feature our latest touch screen control system, which offer intuitive control and excellent accuracies with bespoke firmware for energy saving control, including adjustable automatic on/off times.

Features

  • Temperature range 30.0 to 80.0ºC
  • Integral 7 day timer with touch screen digital control
  • Integral energy meter
  • Fully insulated with adjustable vent cover
  • Stainless steel chamber
  • Manual or automatic overheat reset
  • On screen historical trending (48 hours)
  • Lockable castors on the 425 and 885 litre models
  • Low energy consumption - More than 50% lower to traditional cabinets
  • Low heat output - reducing air conditioning cost
  • High accuracy Pt100B duplex sensors <0.8ºC
  • Excellent stabilty <+/- 0.6ºC
  • New - Set point lock feature

Options

  • Audible warnings
  • Integral Data Logger with reporting firmware
  • Access ports (25, 50, 75 or 100mm)
  • Traceable calibration to national standards
  • Bespoke stands and stacking kits
  • Wall mounting brackets (100 and 200 versions only)
  • Extractor unit
  • Extended warranty
  • Bespoke solutions available upon request
  • Fan speed control (Between 50 to 100%)

Design

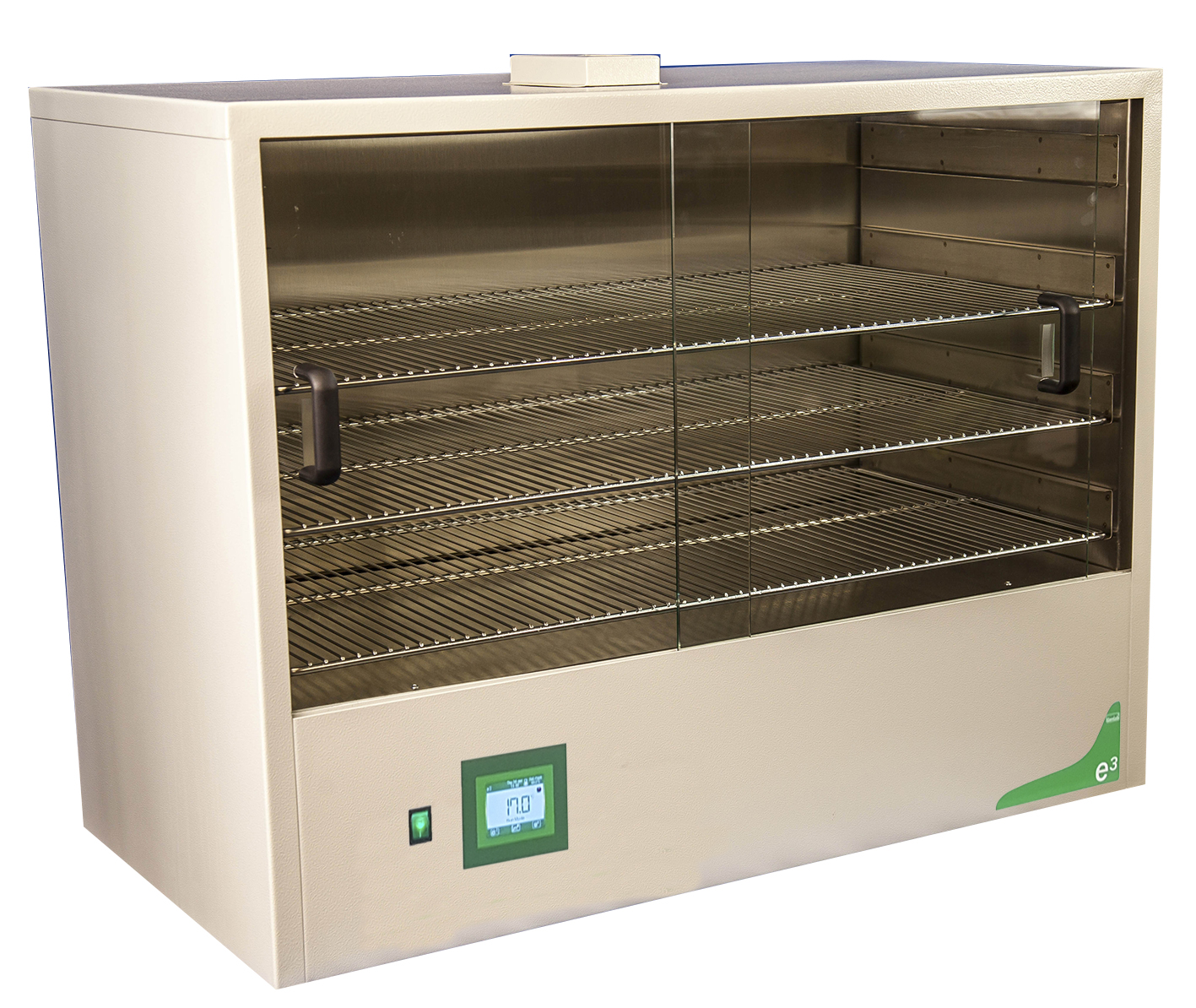

The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from 304 stainless steel and all units have high density insulation. The 100 and 200 litre models have sliding glass doors and the 425 and 885 litre models have double glazed hinged doors.

Heating

Heated by Incoloy sheathed elements which are positioned in the lower chamber and covered with 304 stainless steel guard.

Controls

The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and integral overheat system by using 2 individual Pt100 sensors. The cabinets automatically turn on and off (up to two times per day) with boost and extended functions available outside of the set times. Oven trending is displayed for up to 48 hours.

We have created a tutorial video that demonstrates how to use the touch screen control panel of the E3 units. This can be found by clicking here to access the video website page & it is listed as "Chapter 8 Genlab E3 Range Operation"

Specifications

Natural Convection
Genlab ref.
Number
Capacity
(litres)
Internal dims.
(H x W x D cms)
External dims.
(H x W x D cms)
Shelves
/positions
Wattage
/Voltage
Energy Consumption
kWh/day*
Weight
(kg)
E3DWC100N/TDIG
100
40 x 67 x 37
66 x 72 x 42
3..4
500...230
5.56
50
E3DWC200N/TDIG
200
49 x 93 x 45
77 x 100 x 50
3..4
750...230
8.65
75
E3DWC425N/TDIG
425
135 x 53 x 59
175 x 60 x 65
3..12
1750...230
13.27
140

Fan Assisted
Genlab ref.
Number
Capacity
(litres)
Internal dims.
(H x W x D cms)
External dims.
(H x W x D cms)
No. of
Shelves
Wattage
/Voltage
Energy Consumption
kWh/day*
Weight
(kg)
E3DWC100F/TDIG
100
40 x 67 x 37
66 x 72 x 42
3..4
500...230
8.35
52
E3DWC200F/TDIG
200
49 x 93 x 45
77 x 100 x 50
3..4
750...230
12.97
77
E3DWC425F/TDIG
425
135 x 53 x 59
175 x 60 x 65
3..12
1750...230
18.32
142
E3DWC885F/TDIG
885
135 x 111 x 59
175 x 118 x 65
3..12
2500...230
27.18
210

Ordering

All units have a 304 Stainless steel interior with a touch screen interface as standard.

Where options are required simply add the option code to the original reference.

E.g. E3DWC100F/TDIG with extractor unit and wall bracket becomes E3DWC100F/TDIG/EXT/WALL

Contact sales for bespoke options.

Option codes


Audible Warning - AWA
Access Ports - AP
Traceable Calibration - SPC
3 Point Traceable Calibration - 3PC
Stands - STAND
Stacking Kits - STACK
Wall Brackets - WALL
Extractor Systems - EXT
Extended Warranty - X1
Integral Data Logger - ITL
Fan Speed Controller - FSC

*All units tested were a set temperature of 75ºC with an empty chamber and the ambient temperature was 22ºC. Energy consumption will differ based on a set temperature and ambient conditions. Fan units are able to remove approximately double the moisture of a convection unit, the time taken to dry a load is therefore halved. As a result the energy used to dry a load is actually lower for a fan unit compared to a natural convection unit.
