Genlab Multi Purpose Benchtop Ovens

50 Litre Base Mount Design
MINO50/TDIG

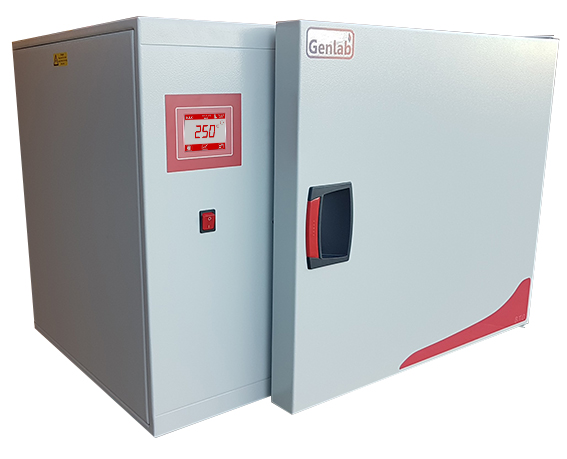

100 Litre Side Mount Design
OV100/TDIG

The Genlab range of Benchtop Ovens offers a range of highly efficient, reliable and cost effective ovens to suit most warming, drying and heat treatment processes. Available in a variety of sizes and designed with both side or base mounted displays to suit your exact needs. Featuring our latest touch screen control system which offers intuitive control and excellent accuracies designed for industrial and laboratory ovens.

Specifications

  • 10 sizes 6 to 200 litres (base mount controller design)
  • 6 sizes 50 to 200 litres (side mount controller design)
  • Temp range 40ºC to 250ºC
  • On screen historical trending (48 hours)
  • Manual or automatic overheat reset
  • High accuracy Pt100B duplex sensors<0.8ºC
  • Excellent stability <+/-0.6ºC (fan assisted)
  • Low chamber uniformity
  • Energy efficient with integral energy meter
  • New - Set point lock feature

Options

  • Fan assisted circulation (not available <30L)
  • Stainless steel chamber
  • 8 Stage profile control
  • Count down timer
  • 24/7 real time clock operation
  • 10 Menu x 8 Stage Profile Controller with Cyclic feature
  • Access ports (25, 50, 75 or 100mm)
  • Audible warnings
  • Traceable calibration certificate to National Standards
  • Bespoke stands and stacking kits
  • Extractor unit
  • Extended warranty
  • Explosion relief panels (OV style only)
  • Bespoke solutions available upon request
  • Fan speed control (Between 50 to 100%)

Benchtop Oven Design

The exterior is constructed from sheet steel and finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD), with a stainless steel (SS) chamber available as an option.

They are fitted with fixed shelf runners and removable chrome plated wire grid shelves.

Benchtop Oven Heating

Heated by Incoloy sheathed elements; positioned in the base of the oven on all natural convection ranges. Fan assisted ranges have elements in the rear on base mount designs and in the side on side mount designs.
The 200 litre units have fan circulation as standard.

Benchtop Oven Controls

The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and an integral overheat system using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and optional upgrades are available for alarm outputs

Benchtop Oven Specifications

Genlab ref.
Number
Capacity
(litres)
Internal dims.

Natural Convection
External dims.

Internal dims.        External dims.

No of
Shelves..
Positions
Wattage
Weight
(kg)
Natural Convection
Fan assisted
Fan assisted
Base mount designs
(H x W x D cms)
(H x W x D cms) (H x W x D cms)
(H x W x D cms)
MINO/6/TDIG 6 15 X 23 X 19 46 x 35 x 33 N/A N/A 1..1 350 16
MINO/18/TDIG 18 26 x 26 x 27 55 x 38 x 41 N/A N/A 2..2 500 21
MINO/30/TDIG
30
24 x 36 x 35
51 x 48 x 49
24 x 36 x 31
51 x 50 x 63
2..2
750
30
MINO/40/TDIG
40
32 x 36 x 35
54 x 48 x 49
32 x 36 x 31
54 x 50 x 63
2..3
750
35
MINO/50/TDIG
53
33 x 49 x 33
66 x 63 x 47
33 x 49 x 29
66 x 63 x 61
2..3
750
45
MINO/75/TDIG
73
33 x 49 x 45
66 x 63 x 60
33 x 49 x 41
66 x 63 x 74
2..3
1000
55
MINO/100/TDIG
99
45 x 49 x 45
78 x 63 x 60
45 x 49 x 41
78 x 63 x 74
3..4
1000
60
MINO/125/TDIG
121
55 x 49 x 45
88 x 63 x 60
55 x 49 x 41
88 x 63 x 74
3..5
1500
65
MINO/150/TDIG
143
55 x 49 x 53
88 x 63 x 68
55 x 49 x 49
88 x 63 x 82
3..5
1500
70
MINO/200/F/TDIG
180
N/A
N/A
75 x 49 x 49
108 x 63 x 84
4..7
2000
75
Side mount designs
OV/50/TDIG 58 42 x 40 x 35 58 x 73 x 48 45 x 36 x 35 58 x 73 x 48 2..3 750 35
OV/75/TDIG 78 42 x 53 x 35 58 x 85 x 48 45 x 49 x 35 58 x 85 x 48 2..3 1000 45
OV/100/TDIG 102 42 x 53 x 46 58 x 85 x 59 45 x 49 x 46 58 x 85 x 59 3..4 1000 55
OV/125/TDIG 126 52 x 53 x 46 69 x 85 x 59 55 x 49 x 46 69 x 85 x 59 3..5 1500 65
OV/150/TDIG 149 52 x 53 x 54 69 x 85 x 67 55 x 49 x 54 69 x 85 x 67 3..5 1500 70
OV/200/F/TDIG 198 N/A N/A 75 x 49 x 54 89 x 85 x 67 4..7 2000 90

Ordering

All units have CLAD interior with a touch screen interface as standard.
Where options are required simply add the option code to the original reference.
E.g. MINO/50/TDIG with fan assisted convection and stainless steel interior and fan circulation becomes MINO/50/TDIG/SS/F

Contact sales for bespoke options

Option codes

Fan Assisted Circulation - F
Stainless Steel Chamber  - SS
3 Stage Advanced Timer  - TIM
10 Menu x 8 Stage Profile Controller with Cyclic feature - TIM/10PRO
Access ports - AP
Audible Warning  - AWA
Single Point Traceable Calibrations - SPC
3 Point Traceable Calibrations - 3PC
Temp Uniformity Surveys - TUS
Extraction Systems  - EXT
Extended Warranty - X1
Stands - STAND
Stacking Kits - STACK
Explosion Relief Panels (OV style only) - EXP
Fan Speed Controller - FSP
