Genlab Large Capacity Multi-Purpose Incubators
1000 litre Incubator
LCI/1000H/TDIG

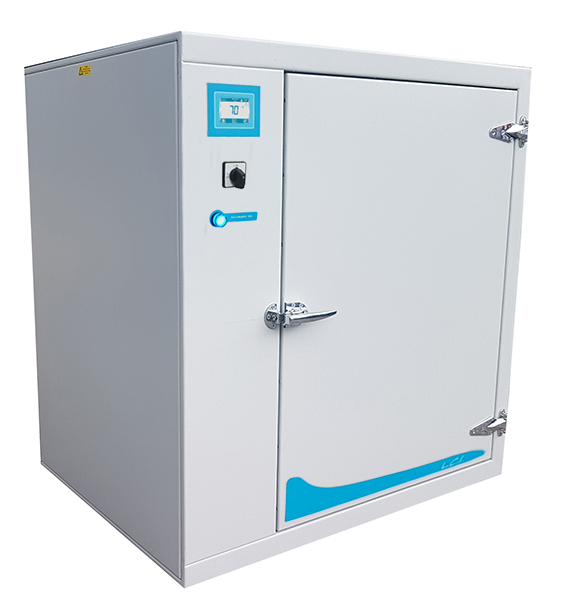

425 litre Incubator
LCI/425V/TDIG
The GENLAB Large Capacity Multipurpose Incubators offer a selection of highly efficient, reliable and cost effective units. They are suitable for larger applications of incubation, research and general laboratory applications. Featuring our latest touch screen control system which offers intuitive control and excellent accuracies designed for laboratory incubators. Fan speed control is now available as an optional extra, a great option when agar testing to stop plates drying out.
Features
- Capacities 250 to 1250 litres
8 sizes (single door design)
9 sizes (dual door design) - Temperature range: ambient + 8 to 70ºC
- Fluctuation +/-0.25ºC @ 37ºC
- Resolution 0.1ºC
- On screen historical trending (48 hours)
- 8 Stage profile control
- Count down timer
- 24/7 real time clock operation
- Manual or automatic overheat reset
- High accuracy Pt100B duplex sensors <0.8ºC
- Fan assisted circulation
- Excellent stability <+/-0.6ºC
- Low chamber uniformity
- Energy efficient with integral energy meter
- New - Set point lock feature
Options
- 10 Menu x 8 Stage Profile Controller with Cyclic feature - 10PRO
- Stainless steel chamber
- Viewing windows
- Inner glass doors
- Access ports (25, 50, 75, 100mm)
- Bespoke stands and stacking kits
- Audible warnings
- Traceable calibrations to national standards
- Extractor unit
- Extended warranty
- Explosion relief panels
- Internal lights
- Bespoke solutions available upon request
- Fan speed control (Between 50 to 100%)
Design
The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option.
Fitted with fixed shelf runners and removable chrome plated wire grid shelves.
The vertical style units (V) are fitted with single doors, the horizontal style units (H) are fitted with twin doors.
Heating
Heated by Incoloy sheathed elements positioned in the side fan duct for all units except the 250H and 350H which have a base fan duct.
Controls
The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and an integral overheat system by using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is disaplayed for up to 48 hours and optional upgrades are available for alarm outputs.
The control panels are fitted on the side of each unit except the 250H and 350H, which are fitted in the base.
Specifications
|
Horizontal Style (Twin Door Design)
|
|||||||
| Genlab ref. Number |
Capacity
(litres) |
Internal dims.
(H x W x D cms) |
External dims.
(H x W x D cms) |
No. of
Shelves |
No. shelf
positions |
Wattage/
Voltage
|
Weight
(kg) |
| LCI/250H/TDIG |
220
|
54 x 92 x 44
|
94 x 109 x 57
|
3
|
4
|
1000/230
|
96
|
| LCI/350H/TDIG |
320
|
54 x 92 x 64
|
94 x 109 x 77
|
3
|
4
|
1500/230
|
125
|
| LCI/425H/TDIG |
450
|
76 x 92 x 64
|
107 x 135 x 81
|
4
|
5
|
2000/230
|
140
|
| LCI/500H/TDIG |
535
|
91 x 92 x 64
|
127 x 135 x 81
|
5
|
7
|
2000/230
|
180
|
| LCI/650H/TDIG |
645
|
91 x 92 x 77
|
127 x 157 x 95
|
5
|
7
|
2000/230
|
280
|
| LCI/750H/TDIG |
750
|
106 x 92 x 77
|
142 x 157 x 95
|
5
|
8
|
2000/230
|
300
|
| LCI/850H/TDIG |
865
|
122 x 92 x 77
|
158 x 157 x 95
|
5
|
9
|
2000/230
|
320
|
| LCI/1000H/TDIG |
1050
|
142 x 92 x 77
|
178 x 157 x 95
|
5
|
11
|
2000/230
|
340
|
| LCI/1250H/TDIG |
1280
|
142 x 122 x 74
|
178 x 187 x 95
|
5
|
11
|
2000/230
|
370
|
|
Vertical Style (Single Door Design)
|
|||||||
| Genlab ref. Number |
Capacity
(litres) |
Internal dims.
(H x W x D cms) |
External dims.
(H x W x D cms) |
No. of
Shelves |
No. shelf
positions |
Wattage/
Voltage
|
Weight
(kg) |
| LCI/250V/TDIG |
240
|
91 x 51 x 52
|
109 x 94 x 61
|
5
|
7
|
1000/230
|
90
|
| LCI/350V/TDIG |
345
|
91 x 61 x 62
|
109 x 104 x 79
|
5
|
7
|
1500/230
|
120
|
| LCI/425V/TDIG |
425
|
91 x 61 x 77
|
117 x 104 x 95
|
5
|
7
|
2000/230
|
150
|
| LCI/500V/TDIG |
535
|
114 x 61 x 77
|
140 x 104 x 95
|
5
|
9
|
2000/230
|
165
|
| LCI/650V/TDIG |
675
|
114 x 77 x 77
|
140 x 142 x 95
|
5
|
9
|
2000/230
|
260
|
| LCI/750V/TDIG |
760
|
128 x 77 x 77
|
164 x 142 x 95
|
5
|
10
|
2000/230
|
280
|
| LCI/850V/TDIG |
840
|
142 x 77 x 77
|
178 x 142 x 95
|
5
|
11
|
2000/230
|
300
|
| LCI/1000V/TDIG |
1005
|
142 x 77 x 92
|
178 x 142 x 110
|
5
|
11
|
2000/230
|
320
|
Ordering
All units have CLAD interior with microprocessor digital control as standard.
Where options are required simply add the option code to the original reference.
E.g. LCI/1250H/TDIG with stainless steel interior and audible alarm becomes LCI/1250H/TDIG/SS/AWA
Contact sales for bespoke options.
Option codes
10 Menu x 8 Stage Profile Controller with Cyclic feature - 10PRO
Stainless Steel - SS
Viewing Window - VIS
Double Door (Glass) - DD
Access Ports - AP
Stands - STAND
Audible Warning - AWA
Traceable Calibartion - SPC
External Extraction Systems - EXT
Extended Warranty - X1
Explosion Relief Panels - EXP
Internal Lights - IL
Castor Wheels (250/350 models only) - 1108
Fan Speed Controller - FSC
