> >>Moisture Extraction Ovens

Genlab Moisture Extraction Ovens

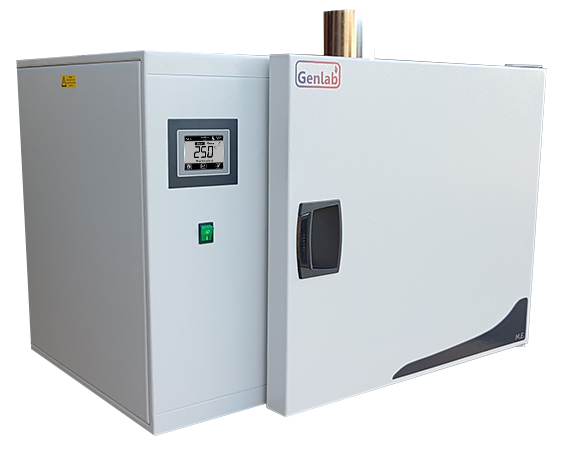

100 litre Moisture Extraction Oven
ME/100/TDIG
500 litre Moisture Extraction Oven
ME/500/TDIG

The Genlab range of Moisture Extraction Ovens are specifically designed to provide rapid drying and removal of excess moisture. Increased air circulation around the chamber and larger extraction vents offer superior drying times.

It features our latest touch screen control system which offer intuitive control and excellent accuracies designed for stable drying conditions. Fan speed control is now available as an optional extra to adjust drying times at the same temperature when required.

Features

  • 14 sizes 50 to 1000 litres
  • High speed air circulation
  • Temperature range: 40 to 250ºC
    (50 to 250ºC on 415 V models)
  • On screen historical trending (48 hours)
  • 8 stage profile control
  • Count down timer
  • 24/7 real time clock operation
  • Manual or automatic overheat reset
  • Excellent stability <0.8ºC
  • Low chamber uniformity
  • Energy efficient with integral energy meter
  • New - Set point lock feature

Options

  • 10 Menu x 8 Stage Profile Controller with Cyclic feature
  • Stainless steel chamber
  • Audible warnings
  • Explosion relief panels
  • Drip trays
  • Access ports (25, 50, 75 or 100mm)
  • Traceable calibrations to national standards
  • Bespoke stands and stacking kits
  • Extended warranty
  • Bespoke solutions available upon request
  • Castor wheels
  • Fan speed control (Between 50 to 100%)

Design

The ovens are specifically designed for the rapid extraction of moisture and are fitted with a 75mm diameter outlet vent, suitable for connection to most external extraction systems.
The exterior is constructed from mild steel coated in aluminium (CLAD), with a stainless steel chamber available as an option. It is also fitted with fixed shelf runners and removable chrome plated wire grid shelves.

Heating

Heated by Incoloy sheathed elements positioned around the fan.

Controls

The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and an integral overheat system by using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and sterlisation sequences can be started from a single button press.

Specifications

Genlab ref.
Number
Capacity (litres)
Internal dims
(H x W x D cm)
External dims
(H x W x D cm)
No. of shelves/
Positions
Wattage/
Voltage
Weight (kg)
ME/50/TDIG
50
45 x 32 x 35
56 x 73 x 50
2..3
750 / 230
35
ME/75/TDIG
75
45 x 49 x 35
56 x 85 x 50
2..3
1000 / 230
45
ME/100/TDIG
100
45 x 49 x 46
56 x 85 x 61
3..4
1000 / 230
55
ME/125/TDIG
125
55 x 49 x 46
66 x 85 x 61
3..5
1500 / 230
65
ME/150/TDIG
145
55 x 49 x 54
66 x 85 x 69
3..5
1500 / 230
70
ME/200/TDIG
200
75 x 49 x 54
86 x 85 x 69
4..7
2000 / 230
85
ME/250/TDIG
240
91 x 51 x 52
117 x 94 x 69
5..7
2000 / 230
90
ME/350/TDIG
345
91 x 61 x 62
117 x 104 x 79
5..7
2500 / 230
120
ME/425/TDIG
425
91 x 61 x 77
117 x 104 x 95
5..7
3000 / 230
150
ME/500/TDIG
535
114 x 61 x 77
140 x 104 x 95
5..9
3000 / 230
165
ME/650/TDIG
675
114 x 77 x 77
140 x 142 x 95
5..9
6000 / 415
280
ME/750/TDIG
760
128 x 77 x 77
164 x 142 x 95
5..10
6000 / 415
300
ME/850/TDIG
840
142 x 77 x 77
178 x 142 x 95
5..11
6000 / 415
320
ME/1000/TDIG
1005
142 x 77 x 92
178 x 142 x 110
5..11
6000 / 415
340

Ordering

All units have stainless steel interior with touch screen interface, high speed air circulation fan and increase vent size as standard.

Where options are required, simply add the option code to the original reference.

E.g. ME/1000/TDIG with CAL cert and drip tray becomes ME/1000/TDIG/SPC/DT

Option codes

10 Menu x 8 Stage Profile Controller with Cyclic feature - 10PRO
Stainless Steel Chamber - SS
Audible Warning  - AWA
Explosion Relief Panels - EXP
Drip Trays - DT
Access Ports - AP
Traceable Calibration - SPC
3 Point Traceable Calibration - 3PC
Stands - STAND
Stacking Kits - STACK
Extended Warranty - X1
Castor Wheels (250 - 350L units only) - 1108
Fan Speed Controller - FSC
