> >>Hot Air Steriliser Ovens

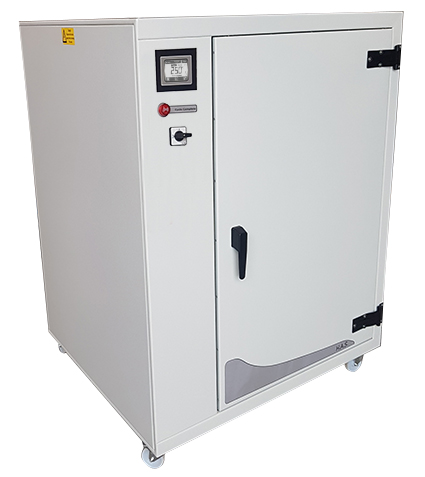

Genlab Hot Air Steriliser Ovens

100 litre Hot Air Steriliser
HAS/100/TDIG
500 Llitre Hot Air Steriliser
HAS/500/TDIG

Hot air sterlisation is one method of effectively killing microbes of all kinds, especially bacteria, viruses and moulds on heat-resistant metals. Genlab's hot air steriliser ovens are used in many hospitals, laboratories, veterinary and medical clinics to sterilise surgical and cosmetic instruments, glass and petri dishes.

It features our latest touch screen control panel, which offers intuitive control and excellent accuracies and features and interactive timer system. This ensures the count down timer does not start until the set point is reached and pauses if the chamber temperature falls below the set point. This ensures the sterilisation time is guaranteed at all times, irrespective of the sterilisation load and chamber volume.

Features

  • 14 sizes 50 to 1000 litres
  • Audible/visual indication for 'End of Cycle'
  • Temperature range: 40 to 250ºC
    (50 to 250ºC on 415V models)
  • On screen historical trending (48 hours)
  • Interactive count down timer
  • Manual or automatic overheat reset
  • Fan assisted circulation
  • Easy clean powder coated body
  • Stainless steel chamber
  • Excellent stability <0.8ºC
  • Low chamber uniformity
  • Adjustable valve for exhaust air regulation
  • Energy efficient with integral energy meter
  • New - Set point lock feature

Options

  • 10 Menu x 8 Stage Profile Controller with Cyclic feature
  • Integral Data Logger with reporting firmware
  • Access ports (25, 50, 75 or 100mm)
  • Mechanical door lock (supplied with 2 keys)
  • Filtered air inlet
  • Traceable calibrations to national standards
  • Bespoke stands and stacking kits
  • Extractor unit
  • Extended warranty
  • Bespoke solutions available upon request
  • Castor wheels

Design

The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from 304 stainless steel and supplied with removeable chrome plated wire shelves for good air circulation. Optional inlet filters are available with prevent small dust particles entering the chamber. Please note this adds 50mm width to the external dimensions below.

Heating

Heated by Incoloy sheathed elements positioned around the fan.

Controls

The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and an integral overheat system by using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heatinh applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and sterlisation sequences can be started from a single button press.

Specifications

Genlab ref.
Number
Capacity (litres)
Internal dims
(H x W x D cm)
External dims
(H x W x D cm)
No. of shelves/
Positions
Wattage/
Voltage
Weight (kg)
HAS/50/TDIG/SS
50
45 x 32 x 35
56 x 73 x 50
2..3
750 / 230
35
HAS/75/TDIG/SS
75
45 x 49 x 35
56 x 85 x 50
2..3
1000 / 230
45
HAS/100/TDIG/SS
100
45 x 49 x 46
56 x 85 x 61
3..4
1000 / 230
55
HAS/125/TDIG/SS
125
55 x 49 x 46
66 x 85 x 61
3..5
1500 / 230
65
HAS/150/TDIG/SS
145
55 x 49 x 54
66 x 85 x 69
3..5
1500 / 230
70
HAS/200/TDIG/SS
200
75 x 49 x 54
86 x 85 x 69
4..7
2000 / 230
85
HAS/250/TDIG/SS
240
91 x 51 x 52
117 x 94 x 69
5..7
2000 / 230
90
HAS/350/TDIG/SS
345
91 x 61 x 62
117 x 104 x 79
5..7
2500 / 230
120
HAS/425/TDIG/SS
425
91 x 61 x 77
117 x 104 x 95
5..7
3000 / 230
150
HAS/500/TDIG/SS
535
114 x 61 x 77
140 x 104 x 95
5..9
3000 / 230
165
HAS/650/TDIG/SS
675
114 x 77 x 77
140 x 142 x 95
5..9
6000 / 415
280
HAS/750/TDIG/SS
760
128 x 77 x 77
164 x 142 x 95
5..10
6000 / 415
300
HAS/850/TDIG/SS
840
142 x 77 x 77
178 x 142 x 95
5..11
6000 / 415
320
HAS/1000/TDIG/SS
1005
142 x 77 x 92
178 x 142 x 110
5..11
6000 / 415
340

Ordering

All units have stainless steel interior with touch screen interface and interactive timer as standard.

Where options are required, simply add the option code to the original reference.

E.g. HAS/1000/TDIG with CAL cert and door lock becomes HAS/1000/TDIG/SPC/DL

Option codes

10 Menu x 8 Stage Profile Controller with Cyclic feature - 10PRO
Access Port - AP
Door lock - DL
Filtered Air Inlet - FIL
Traceable Calibration  - SPC
3 Point Traceable Calibration - 3PC
Stands - STAND
Stacking Kits - STACK
Extractor Systems - EXT
Extended Warranty - X1
Castor wheels (250 - 350L units only) - 1108
Integral Data Logger
