Genlab Drum Warming Ovens
DWO16

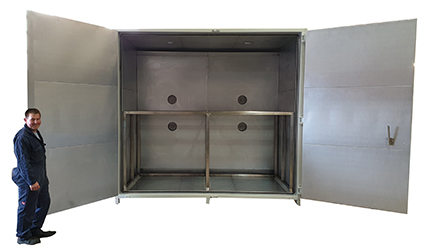

DWO16
GENLAB offer a range of Drum Warming Ovens (DWO) that are specifically designed for warm either 200Litre drums or standard size IBC's, and available in a range of sizes from one to sixteen drum capacity. Larger capacity units are available upon request.
Internal racking and cages are available to suit most drum sizes or specific systems can be manufactured to meet individual customer requirements.
Features
- 5 sizes 1,2, 4, 8 and 16 drum capacity
- Temperature range 50 to 150ºC
- Dual door with heavy duty 2 point locking mechanism
- Internal safety release lock
- Automatic overheat reset
- High velocity fan assisted circulation
- Excellent stabilty <+/- 0.8ºC
- Low chamber uniformity
Options
- Stainless steel chamber
- Profile/cascade controllers
- Process recorders with ethernet and USB output
- Count down timers
- Explosion relief panels
- Access ports (25m 50, 75 or 100mm)
- Traceable calibrations to national standards
- Heavy duty shelving / trolleys
- Extractor unit/bifurcated fans
- Bespoke solutions available upon request
Design
Genlab DWO are constructed from a powder coated heavy duty framework which is fitted with powder coated panels and have a minimum of 65mm high density insulation.

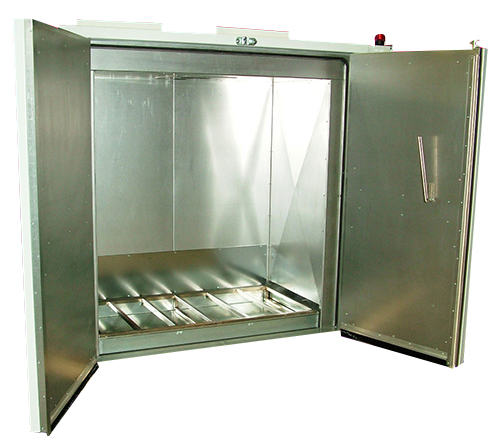

The interior chamber is made from mild steel coated with aluminium, with stainless steel chambers available as an option. They are designed with a full insulated load bearing floor for energy efficient running.
Heating
Units are heated by Incoloy sheathed elements positioned in the roof of the oven, and have high speed fans for high velocity air circulation. Heated air is forced down internal side walls of the oven for optimum uniformity conditions. The larger DWO16 has the elements positioned in the rear of the unit.
Controls

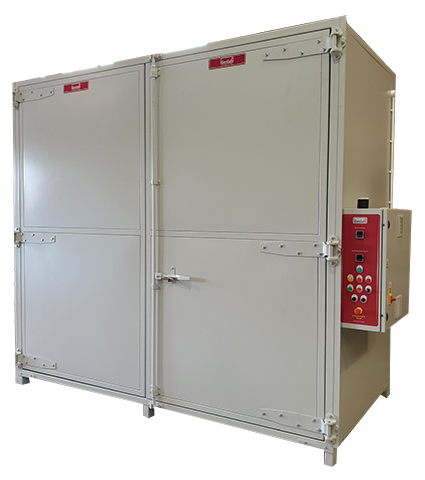

An external control panel is mounted on the right hand side of the oven (left upon request). They are populated with market leading controllers from Eurotherm and have premium switchgear for longevity and reliable operation. Each oven has an independent overheat protection with auto reset and fan motor protection.
Specifications
| Genlab ref. Number |
Capacity
(litres) |
Internal dims.
(H x W x D cms) |
External dims.
(H x W x D cms) |
Wattage/
Voltages
|
Fans
(No x Size)
|
Weight
(kg) |
| DWO1 |
885
|
130 x 80 x 85
|
199 x 154 x 113
|
9000/415
|
1 x 0.37
|
700
|
| DWO2 |
1550
|
130 x 140 x 85
|
199 x 214 x 113
|
12000/415
|
1 x 0.55
|
800
|
| DWO4 |
2550
|
130 x 140 x 140
|
199 x 214 x 168
|
15000/415
|
2 x 0.55
|
1000
|
| DWO8 |
5460
|
130 x 300 x 140
|
204 x 374 x 168
|
24000/415
|
2 x 1.5
|
1400
|
| DWO16 |
12100
|
270 x 320 x 140
|
310 x 372 x 207
|
30000/415
|
4 x 0.55
|
1800
|
Ordering
All units have CLAD interior with an external control panel mounted on the right hand side.
Where options are required simply add the option code to the original reference.
E.g. DWO8 with explosion relief panels and 25mm access port becomes DWO8/EXP/AP.
Contact sales for bespoke options.
Option codes
Stainless Steel Chamber - SS
3 Point Calibration - 3PC
9 Point Temperature Uniformity Survey - 9PC
Explosion Relief Panels - EXP
Extraction Systems - BIEXT
Count Down Timer - TDT
Real Time Clock - RTC
Profile Control - 3016CP
10 Stage Profile Control - 3016CP10
Recorder - NCR
Recorder with Multi Profile - NPCR
25mm Access Port - AP
50mm Access Port - AP50
75mm Access Port - AP75
100mm Access Port - AP100
Door Contact - DC
